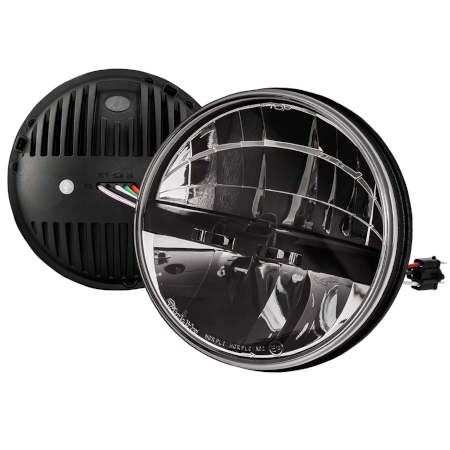

ECE 7" LED Headlights - RHD - Pair

Suitable for:-

• Series
• Defender
• Range Rover Classic

Features & Benefits:-

• ECE & ROHS compliant
• LED sealed beam technology with polycarbonate lens and sealed electronics
• Up to 50 x longer life than halogen headlight, lowering life-cycle costs
• Produces pure white light, nearly identical to daylight that is easy on the eye, unlike harsh blue HID systems
• Includes built-in position light with optional wiring
• Offers great forward vision, improved roadside coverage and highly controlled beam patterns, offering glare protection to oncoming traffic
• Dipped/passing beam and main/driving beam functionality
• Ultra-bright output for maximum night visibility
• H4, 3-Blade connector system (main & dipped beam only)

Technical Specifications:-

• Material
  • Hard-coated polycarbonate lens
  • eCoat aluminium housing and internal structures
  • Metalized reflector
  • 1.3mm CSA / 16 gauge wire
• Light Source
  • 2 LED arrays
• Power
  • Multi-volt (9V-33V) design works with both 12V and 24V systems
• Headlight
  • 1.3A (dipped/passing) @ 13.2V
  • 2.3A (main/driving) @ 13.2V
  • 0.6A (dipped/passing) @ 26.4V
  • 1.1A (main/driving) @ 26.4V
• Position Light
  • 0.03A @ 13.2V, 0.03A @ 26.4V
• Additional Specifications
  • Operating temperature range: -40°C to 50°C
  • Overvoltage protection to 600V

Note - Some EU countries may require fitment of headlight washers.
